Overview
Rclade automatically detects and parses four taxonomy label formats:
| Format | Separator | Prefix | Example |
|---|---|---|---|
| GTDB | ; |
__ |
d__Bacteria;p__Proteobacteria |
| Silva | ; |
none | Bacteria;Proteobacteria |
| NCBI | ; |
none | cellular organisms;Bacteria |
| Custom rank |
_ + code |
none | species_d_Bacteria_p_Proteobacteria |
Automatic Detection
library(Rclade)
# Load example data
data(example_tree)
# Auto-detection works in most cases
p <- plot_timetree(example_tree, rank = "phylum",
taxonomy_format = "auto",
add_timescale = FALSE)
#>
#> ============================================================
#> Rclade: Phylogenetic Tree Visualization
#> ============================================================
#> 2026-09-15T16:13:03.219+00:00 | INFO | Starting plot_timetree pipeline
#> 2026-09-15T16:13:03.220+00:00 | INFO | Tree input : phylo object
#> 2026-09-15T16:13:03.220+00:00 | INFO | Rank : phylum
#> 2026-09-15T16:13:03.220+00:00 | INFO | Layout : rectangular
#> 2026-09-15T16:13:03.221+00:00 | INFO | Unit : auto
#> 2026-09-15T16:13:03.222+00:00 | INFO | Step 1/7: Input validation and reading
#>
#> --------------------------------------------------
#> >> Input Validation
#> --------------------------------------------------
#> 2026-09-15T16:13:03.223+00:00 | INFO | Tips : 50
#> 2026-09-15T16:13:03.224+00:00 | INFO | Internal nodes : 49
#> 2026-09-15T16:13:03.224+00:00 | INFO | Edge lengths range : 40.1579 to 2758.4006
#> 2026-09-15T16:13:03.225+00:00 | INFO | Input validation passed
#> 2026-09-15T16:13:03.226+00:00 | INFO | Timer 'input_reading': 3 ms
#> 2026-09-15T16:13:03.226+00:00 | INFO | Step 2/7: Taxonomy parsing
#> 2026-09-15T16:13:03.227+00:00 | INFO | Using rank-based taxonomy: phylum
#> 2026-09-15T16:13:03.236+00:00 | INFO | Detected format : GTDB
#> 2026-09-15T16:13:03.236+00:00 | INFO | Groups found : 5
#> 2026-09-15T16:13:03.237+00:00 | INFO | Timer 'taxonomy_parsing': 10 ms
#> 2026-09-15T16:13:03.237+00:00 | INFO | Step 3/7: MRCA computation and monophyly check
#> 2026-09-15T16:13:03.238+00:00 | INFO | Checking monophyly and computing MRCA for each group...
#> 2026-09-15T16:13:03.241+00:00 | INFO | Valid groups for collapse: 5 out of 5 total groups
#> 2026-09-15T16:13:03.242+00:00 | INFO | Valid MRCA nodes : 5
#> 2026-09-15T16:13:03.242+00:00 | INFO | Timer 'mrca_computation': 5 ms
#> 2026-09-15T16:13:04.076+00:00 | INFO | Step 4/7: Color generation
#> 2026-09-15T16:13:04.084+00:00 | INFO | Color palette : viridis
#> 2026-09-15T16:13:04.084+00:00 | INFO | Step 5/7: Tree rendering
#> ! # Invaild edge matrix for <phylo>. A <tbl_df> is returned.
#> ! # Invaild edge matrix for <phylo>. A <tbl_df> is returned.
#> 2026-09-15T16:13:04.292+00:00 | INFO | Collapsing 5 clades...
#> 2026-09-15T16:13:04.321+00:00 | INFO | Clade collapse complete
#> 2026-09-15T16:13:04.322+00:00 | INFO | Timer 'tree_rendering': 237 ms
#> 2026-09-15T16:13:04.323+00:00 | INFO | Step 6/7: Timescale integration
#>
#> ============================================================
#> Pipeline Complete
#> ============================================================
#> 2026-09-15T16:13:04.419+00:00 | INFO | Tips : 50
#> 2026-09-15T16:13:04.420+00:00 | INFO | Groups parsed : 5
#> 2026-09-15T16:13:04.420+00:00 | INFO | Groups collapsed : 5
#> 2026-09-15T16:13:04.421+00:00 | INFO | Singleton groups : 0
#> 2026-09-15T16:13:04.421+00:00 | INFO | Skipped (non-monophyletic) : 0
#> 2026-09-15T16:13:04.421+00:00 | INFO | Skipped (root/zero-tip) : 0
#> 2026-09-15T16:13:04.422+00:00 | INFO | Taxonomy format : GTDB
#> 2026-09-15T16:13:04.422+00:00 | INFO | Layout : rectangular
#> 2026-09-15T16:13:04.423+00:00 | INFO | Timescale : disabled
#> 2026-09-15T16:13:04.423+00:00 | INFO | plot_timetree completed successfullyDetection applies conservative “clear majority” rules: GTDB requires
a [dpcofgsk]__ prefix-match score >= 0.6
and a semicolon-delimiter majority; embedded requires a
_[dpcofgsk]_ match score >= 0.6; NCBI/Silva first
require a semicolon majority and then compare prefix scores. Ambiguous
labels fall back to "unknown". Note that accession-prefixed
embedded labels with double-underscore separators
(e.g. GCA_xxx_d__Archaea_p__Nanoarchaeota) are correctly
detected as embedded (not GTDB) and are parsed by all three
delimiter modes; for label schemes with extra intermediate ranks (e.g. a
superphylum field), use
taxonomy_format = "custom_regex" with explicit per-rank
patterns.
Quality Report
Check how well your labels can be parsed before visualization:
labels <- example_tree$tip.label
summarize_taxonomy_quality(labels, format = "GTDB")
#> === Taxonomy Label Parsing Quality Report ===
#> Total labels: 50
#> Detected format: GTDB
#>
#> Per-rank parse rates:
#> kingdom 0.0% (0/50)
#> domain 100.0% (50/50) ====================
#> phylum 100.0% (50/50) ====================
#> class 100.0% (50/50) ====================
#> order 0.0% (0/50)
#> family 0.0% (0/50)
#> genus 0.0% (0/50)
#> species 0.0% (0/50)
#> subspecies 0.0% (0/50)
#>
#> All labels parsed successfully.Manual Format Specification
If auto-detection fails, specify the format explicitly:
# GTDB format
p <- plot_timetree(example_tree, rank = "phylum",
taxonomy_format = "GTDB",
add_timescale = FALSE)
#>
#> ============================================================
#> Rclade: Phylogenetic Tree Visualization
#> ============================================================
#> 2026-09-15T16:13:04.701+00:00 | INFO | Starting plot_timetree pipeline
#> 2026-09-15T16:13:04.701+00:00 | INFO | Tree input : phylo object
#> 2026-09-15T16:13:04.702+00:00 | INFO | Rank : phylum
#> 2026-09-15T16:13:04.702+00:00 | INFO | Layout : rectangular
#> 2026-09-15T16:13:04.703+00:00 | INFO | Unit : auto
#> 2026-09-15T16:13:04.703+00:00 | INFO | Step 1/7: Input validation and reading
#>
#> --------------------------------------------------
#> >> Input Validation
#> --------------------------------------------------
#> 2026-09-15T16:13:04.704+00:00 | INFO | Tips : 50
#> 2026-09-15T16:13:04.705+00:00 | INFO | Internal nodes : 49
#> 2026-09-15T16:13:04.705+00:00 | INFO | Edge lengths range : 40.1579 to 2758.4006
#> 2026-09-15T16:13:04.706+00:00 | INFO | Input validation passed
#> 2026-09-15T16:13:04.706+00:00 | INFO | Timer 'input_reading': 3 ms
#> 2026-09-15T16:13:04.707+00:00 | INFO | Step 2/7: Taxonomy parsing
#> 2026-09-15T16:13:04.707+00:00 | INFO | Using rank-based taxonomy: phylum
#> 2026-09-15T16:13:04.715+00:00 | INFO | Detected format : GTDB
#> 2026-09-15T16:13:04.716+00:00 | INFO | Groups found : 5
#> 2026-09-15T16:13:04.716+00:00 | INFO | Timer 'taxonomy_parsing': 9 ms
#> 2026-09-15T16:13:04.717+00:00 | INFO | Step 3/7: MRCA computation and monophyly check
#> 2026-09-15T16:13:04.717+00:00 | INFO | Checking monophyly and computing MRCA for each group...
#> 2026-09-15T16:13:04.720+00:00 | INFO | Valid groups for collapse: 5 out of 5 total groups
#> 2026-09-15T16:13:04.720+00:00 | INFO | Valid MRCA nodes : 5
#> 2026-09-15T16:13:04.720+00:00 | INFO | Timer 'mrca_computation': 4 ms
#> 2026-09-15T16:13:04.721+00:00 | INFO | Step 4/7: Color generation
#> 2026-09-15T16:13:04.723+00:00 | INFO | Color palette : viridis
#> 2026-09-15T16:13:04.723+00:00 | INFO | Step 5/7: Tree rendering
#> ! # Invaild edge matrix for <phylo>. A <tbl_df> is returned.
#> ! # Invaild edge matrix for <phylo>. A <tbl_df> is returned.
#> 2026-09-15T16:13:04.844+00:00 | INFO | Collapsing 5 clades...
#> 2026-09-15T16:13:04.873+00:00 | INFO | Clade collapse complete
#> 2026-09-15T16:13:04.873+00:00 | INFO | Timer 'tree_rendering': 150 ms
#> 2026-09-15T16:13:04.874+00:00 | INFO | Step 6/7: Timescale integration
#>
#> ============================================================
#> Pipeline Complete
#> ============================================================
#> 2026-09-15T16:13:04.956+00:00 | INFO | Tips : 50
#> 2026-09-15T16:13:04.956+00:00 | INFO | Groups parsed : 5
#> 2026-09-15T16:13:04.957+00:00 | INFO | Groups collapsed : 5
#> 2026-09-15T16:13:04.957+00:00 | INFO | Singleton groups : 0
#> 2026-09-15T16:13:04.958+00:00 | INFO | Skipped (non-monophyletic) : 0
#> 2026-09-15T16:13:04.958+00:00 | INFO | Skipped (root/zero-tip) : 0
#> 2026-09-15T16:13:04.958+00:00 | INFO | Taxonomy format : GTDB
#> 2026-09-15T16:13:04.959+00:00 | INFO | Layout : rectangular
#> 2026-09-15T16:13:04.959+00:00 | INFO | Timescale : disabled
#> 2026-09-15T16:13:04.959+00:00 | INFO | plot_timetree completed successfully

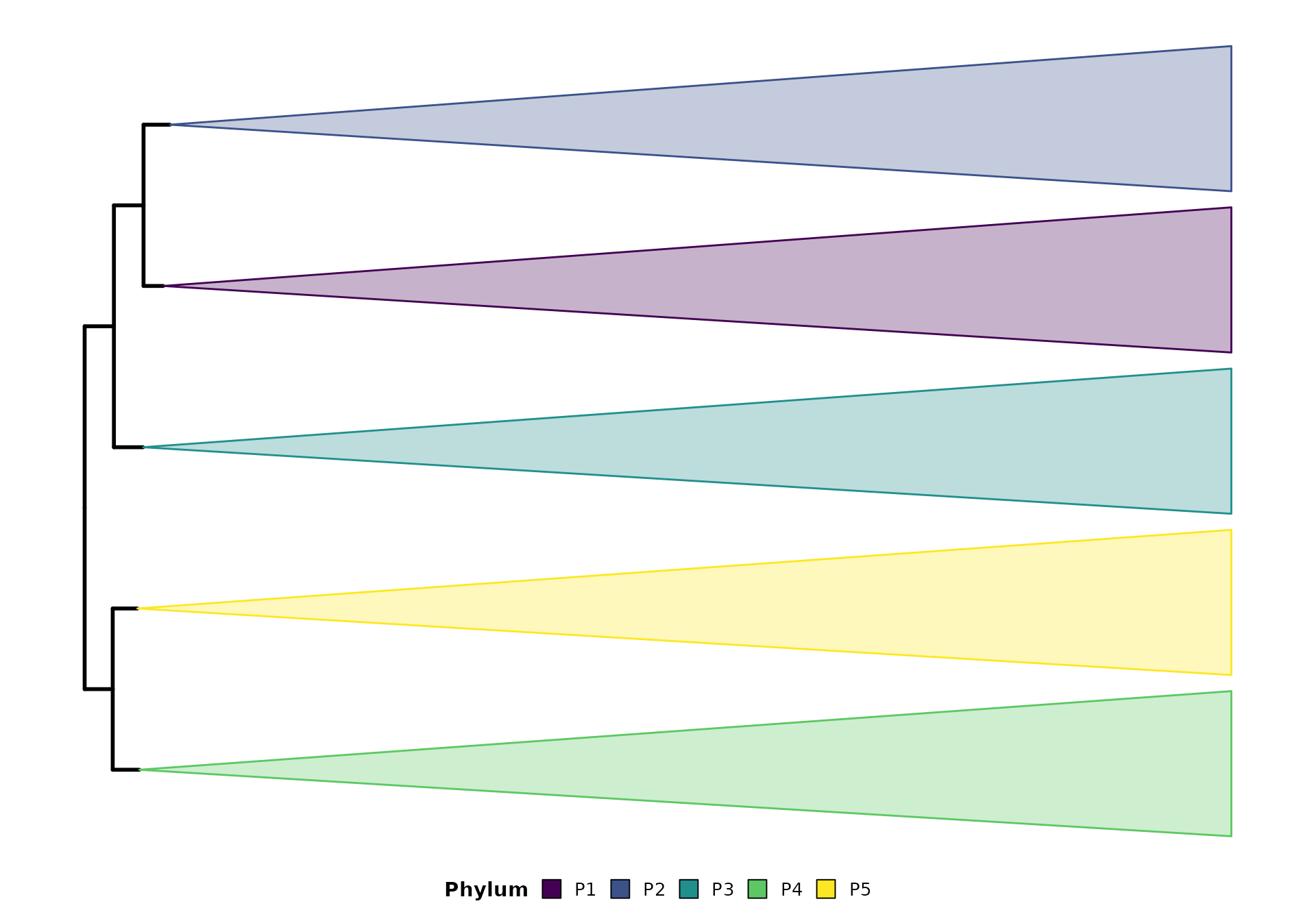

print(p)
NCBI Format Handling
NCBI taxonomy uses position-based rank mapping. Note that this may produce systematic rank offsets in non-standard lineages (e.g., viruses where Riboviria is a realm, not a domain). For critical applications, consider using GTDB or Silva format, or providing custom_patterns.
# NCBI format (requires NCBI-labeled tree)
p <- plot_timetree(ncbi_tree, rank = "phylum",
taxonomy_format = "NCBI",
add_timescale = FALSE)Custom Regex Patterns
For non-standard formats:
p <- plot_timetree(tree, rank = "phylum",
add_timescale = FALSE,
taxonomy_format = "custom_regex",
custom_patterns = list(
domain = "Domain:([^|]+)",
phylum = "Phylum:([^|]+)"
))Embedded Format Parsing Strategies
For embedded (Format A) labels, Rclade supports three delimiter matching strategies:
| Mode | Description | Best for |
|---|---|---|
reverse (default) |
Match ranks from right to left | Labels where taxon names contain underscores |
greedy |
Match ranks from left to right using character-class boundaries | Simple labels with no underscores in names |
segment |
Extract content between delimiters | Preserving underscores within values |
# Default reverse mode
p <- plot_timetree(tree, rank = "phylum",
add_timescale = FALSE,
taxonomy_format = "custom_rank",
taxonomy_delimiter_mode = "reverse")
# Segment mode for labels with underscores in taxon names
p <- plot_timetree(tree, rank = "phylum",
add_timescale = FALSE,
taxonomy_format = "custom_rank",
taxonomy_delimiter_mode = "segment")Custom Taxonomy Levels
You can extend or override the default rank codes and delimiters with
taxonomy_levels. This is useful for non-standard ranks such
as kingdom (k) or subspecies (ss).
For embedded (Format A) labels, provide a list of rank codes and their prefixes:
p <- plot_timetree(tree, rank = "phylum",
add_timescale = FALSE,
taxonomy_format = "custom_rank",
taxonomy_levels = list(
codes = c("k", "d", "p", "c", "o", "f", "g", "s", "ss"),
names = c("_k_", "_d_", "_p_", "_c_",
"_o_", "_f_", "_g_", "_s_", "_ss_")
))The codes vector defines the short rank codes, and
names defines the delimiters used in the labels. The same
taxonomy_levels object is propagated through highlighting,
monophyly checks, special identifier resolution, and external taxonomy
file merging.
References & Acknowledgments
Rclade supports taxonomy formats from several databases. If you use data from these sources in published research, please cite them appropriately:
- GTDB: Parks DH, Chuvochina M, Chaumeil PA, Rinke C, Mussig AJ, Hugenholtz P (2020). “A complete domain-to-species taxonomy for Bacteria and Archaea.” Nature Biotechnology, 38(9), 1079-1086. doi:10.1038/s41587-020-0501-8
- SILVA: Quast C, Pruesse E, Yilmaz P, Gerken J, Schweer T, Yarza P, Peplies J, Glöckner FO (2013). “The SILVA ribosomal RNA gene database project: improved data processing and web-based tools.” Nucleic Acids Research, 41(D1), D590-D596. doi:10.1093/nar/gks1219
- NCBI Taxonomy: Sayers EW, et al. (2022). “Database resources of the National Center for Biotechnology Information.” Nucleic Acids Research, 50(D1), D20-D26. doi:10.1093/nar/gkab1112
Rclade also builds on the ggtree and deeptime R packages:
- Yu G, Smith DK, Zhu H, Guan Y, Lam TT-Y (2017). “ggtree: an R package for visualization and annotation of phylogenetic trees.” Methods in Ecology and Evolution, 8(1), 28-36. doi:10.1111/2041-210X.12628
- Gearty W (2025). “deeptime: an R package for visualizations of data over geological time intervals.” Big Earth Data. doi:10.1080/20964471.2025.2537516
